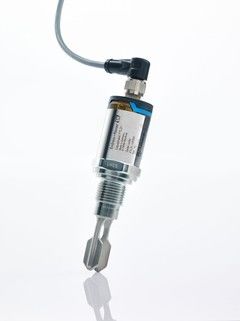

Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser
  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser

Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser

Place of Origin DE
পরিচিতিমুলক নাম Endress Hauser
সাক্ষ্যদান Rohs
Model Number FTL31-15R9/0
পণ্যের বিবরণ
Process temperature:
-40 °C ... 150 °C
Process pressure / max. overpressure limit:
Vacuum ... 40 bar (Vacuum ... 580 psi)
Min. density of medium:
>0,7g/cm³ (>0,5g/cm³ optional)
Measuring principle:
Vibration Liquids
Supply / Communication:
20 ... 253V AC/DC, 2-wire 10 ... 30V DC-PNP 3-wire
Ambient temperature:
-40 °C ... 70 °C (-40 °F ... 158 °F)
বিশেষভাবে তুলে ধরা:

Vibronic Point Level Detection

,

FTL31 Point Level Detection

,

Point Level Endress Hauser Micropilot

পেমেন্ট ও শিপিংয়ের শর্তাবলী
Minimum Order Quantity
1pcs
মূল্য
negotiable
Packaging Details
Original packing
Delivery Time
On request
Payment Terms
T/T
Supply Ability
500pcs/month
পণ্যের বর্ণনা



Vibronic Point level detection Liquiphant FTL31 E&H Instrument FTL31-15R9/0



Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)

Process pressure / max. overpressure limit

Vacuum ... 40 bar
(Vacuum ... 580 psi)

Min. density of medium

>0,7g/cm³
(>0,5g/cm³ optional)



Field of application

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill prevention or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
-Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
- IO-Link connectivity



Point level switch in compact design with stainless steel housing.

  • Process connections: Threads

  • Temperature: -40 to +150°C (-40 to +302°F)

  • Pressure: -1 to +40bar (-14.5 to 580psi)

  • Surface roughness: 3.2µm

  • Overfill prevention and leakage detection WHG, marine approvals, final inspection report

Benefits

  • Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

  • Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

  • A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

  • No calibration is required, no specific know-how or tools (e.g. software) necessary

  • Robust design made of stainless steel (316L) assures highest durability

  • A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

  • No mechanically moved parts, free of maintenance

  • Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser 0Vibronic Point Level Detection Liquiphant FTL31-15R9/0 Endress Hauser 1
